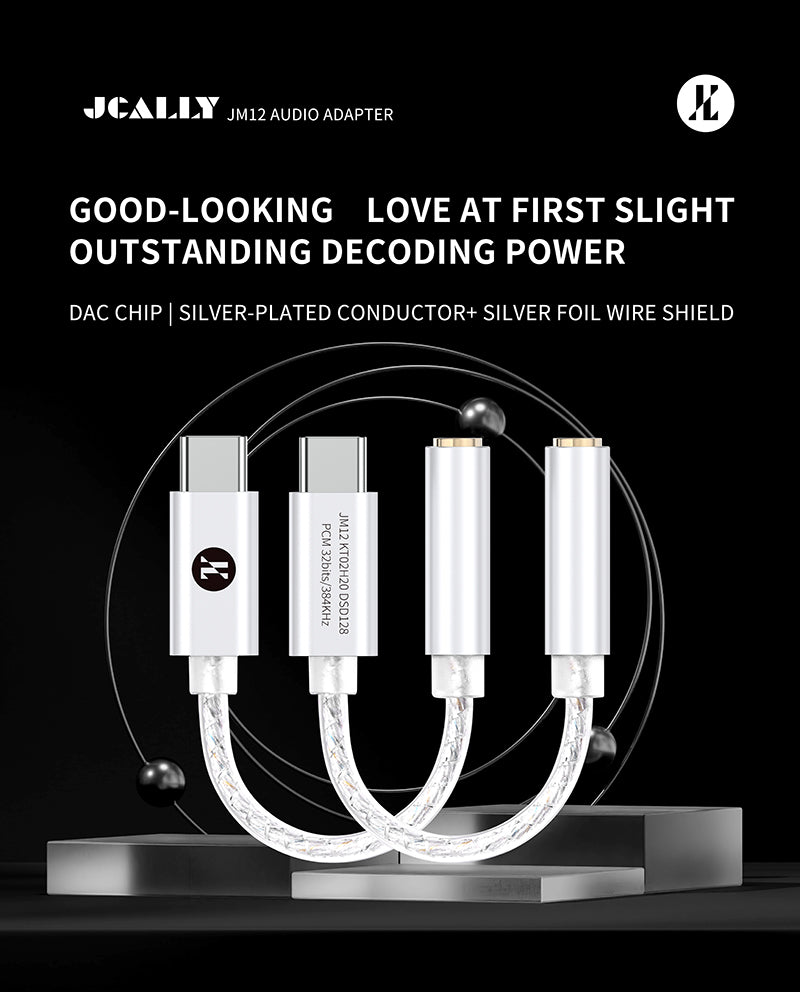

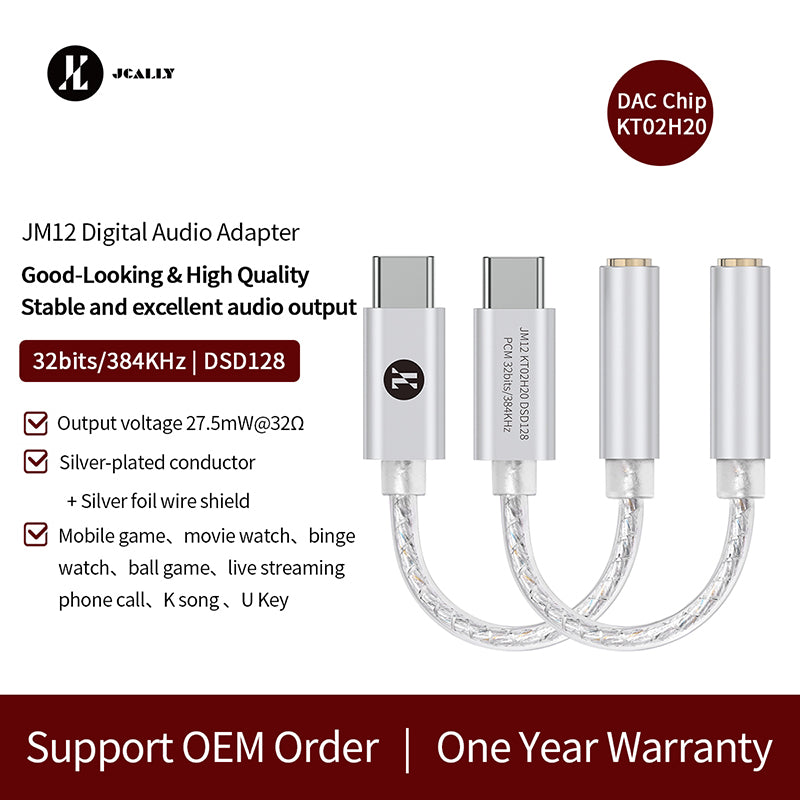

JCALLY JM12 AUDIO ADAPTER
GOOD-LOOKING LOVE AT FIRST SLIGHTOUTSTANDING DECODING POWER
DAC CHIP |SILVER-PLATED CONDUCTOR+ SILVER FOIL WIRE SHIELD

IMMERSIVE APPLICATION SCENARIOSSMALL SHAPE | EASY HAND TAKE
SUPPORT HIGHQUALITY MUSIC
SUPPORT MOBILEGAME/BINGE GAME
SUPPORTLIVE STREAMINGPHONE CALL
SUPPORT MICROPHONE FUNCTION

High Quality DAc chipExcellent Sound Quality
JM12 is a competitive price digital audio codeadapter. Built-in KT micro KT02H20 chip, PCMsupport 32bits/384KHz,DSD128, it supports bothmicrophone and phone call function.

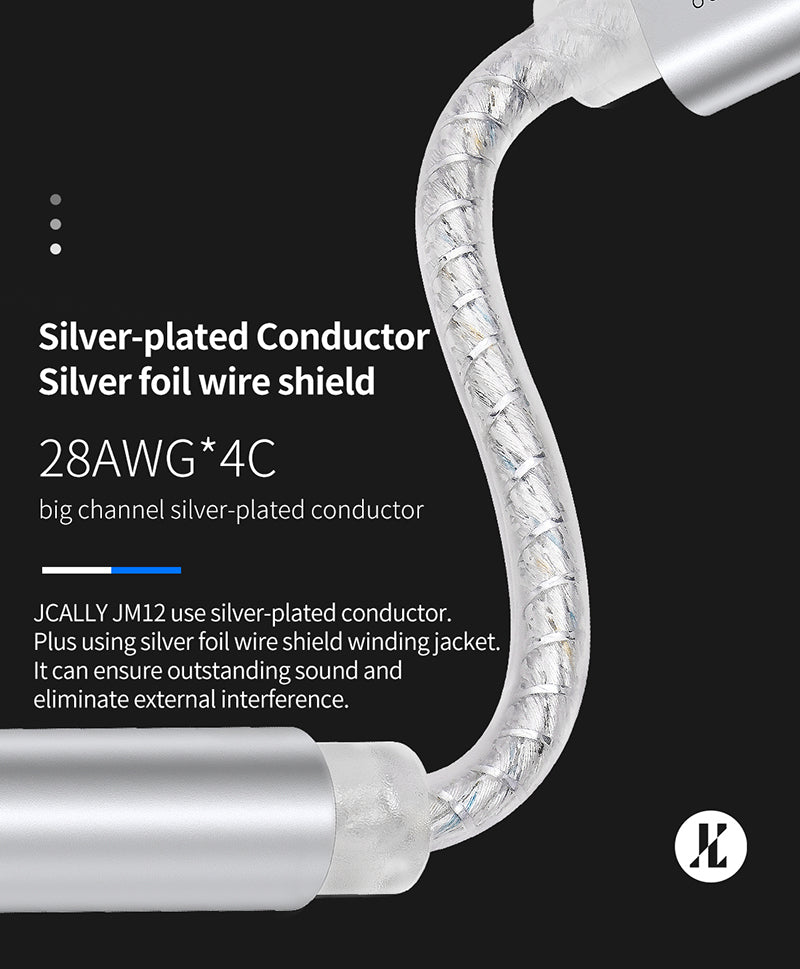

Silver-plated ConductorSilver foil wire shield
28AWG*4C
big channel silver-plated conductor
JCALLY JM12 use silver-plated conductor.Plus using silver foil wire shield windingjackIt can ensure outstanding sound andeliminate external interference.

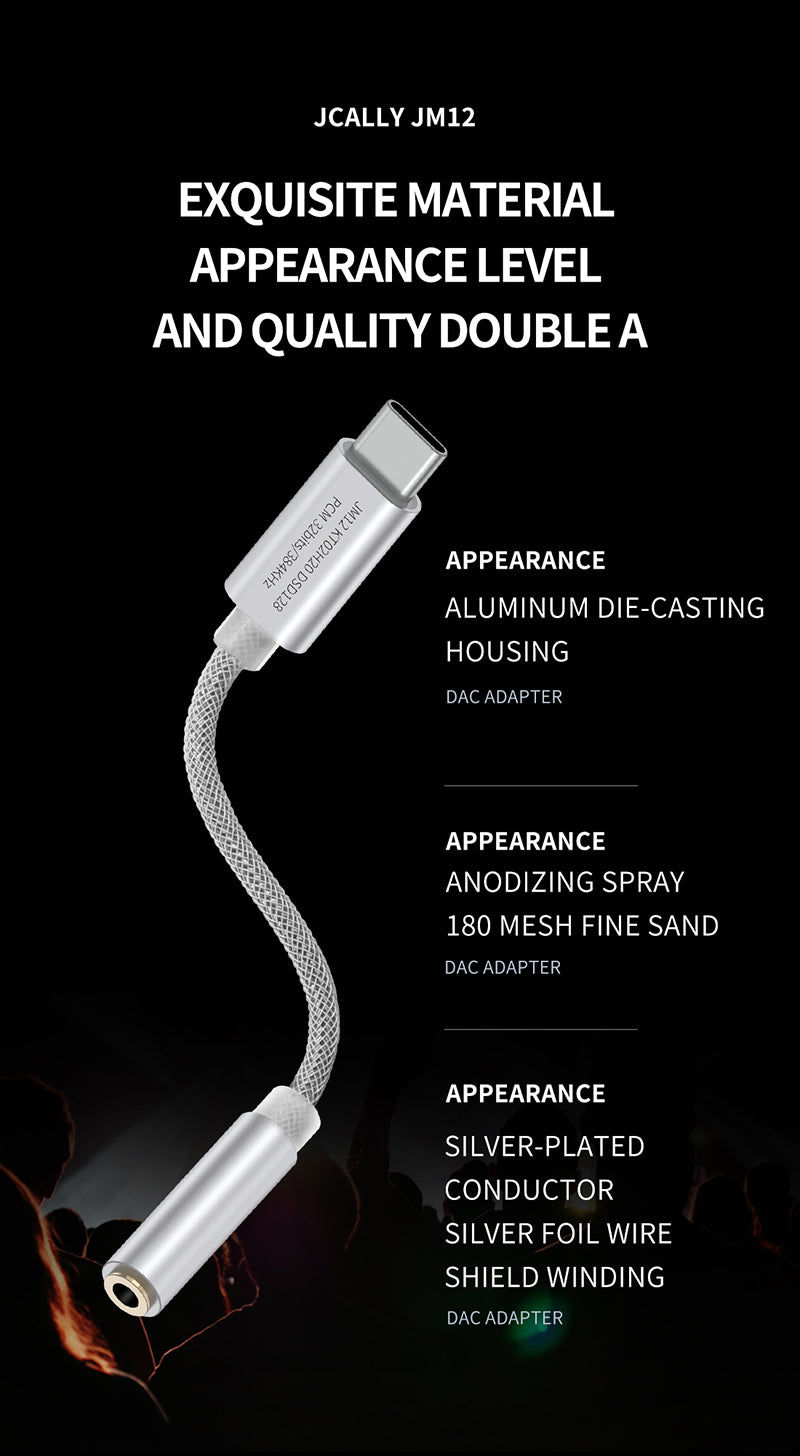

EXQUISITE MATERIALAPPEARANCE LEVELAND QUALITY DOUBLE A
APPEARANCE
ALUMINUM DIE-CASTING
HOUSING
DAC ADAPTER
APPEARANCEANODIZING SPRAY180 MESH FINE SAND
DAC ADAPTER
APPEARANCE
SILVER-PLATEDCONDUCTOR
SILVER FOIL WIRE
SHIELD WINDING
DAC ADAPTER

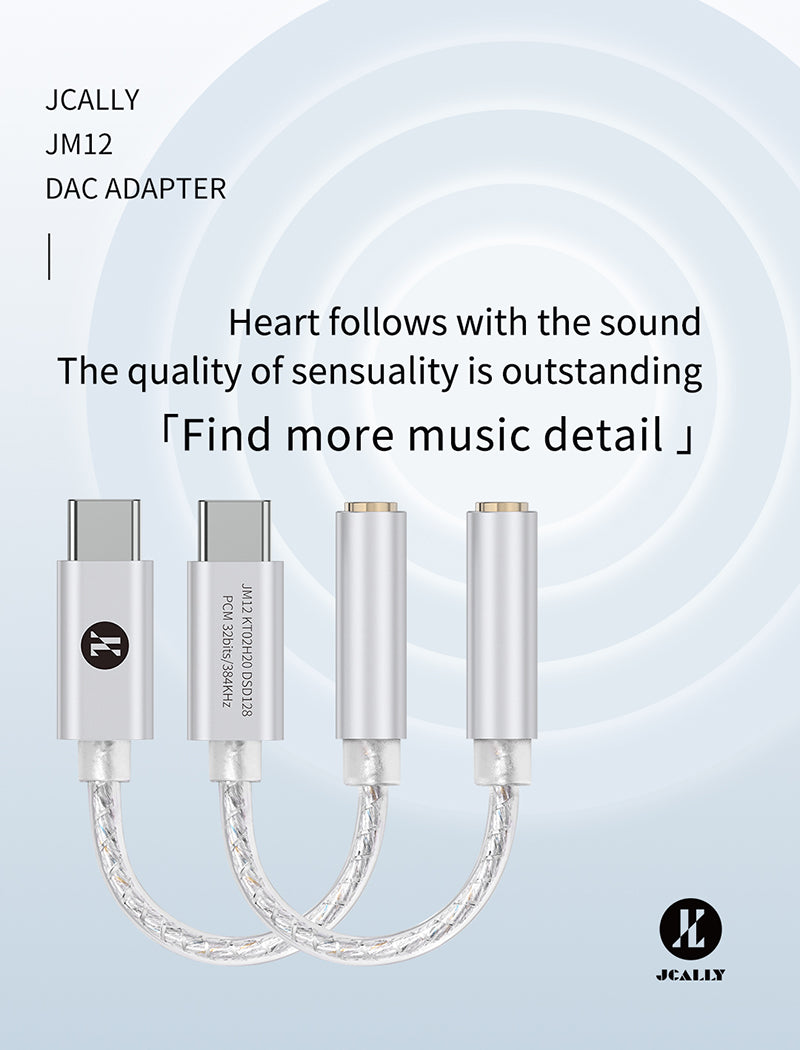

Heart follows with the soundThe quality of sensuality is outstanding「Find more music detail 」

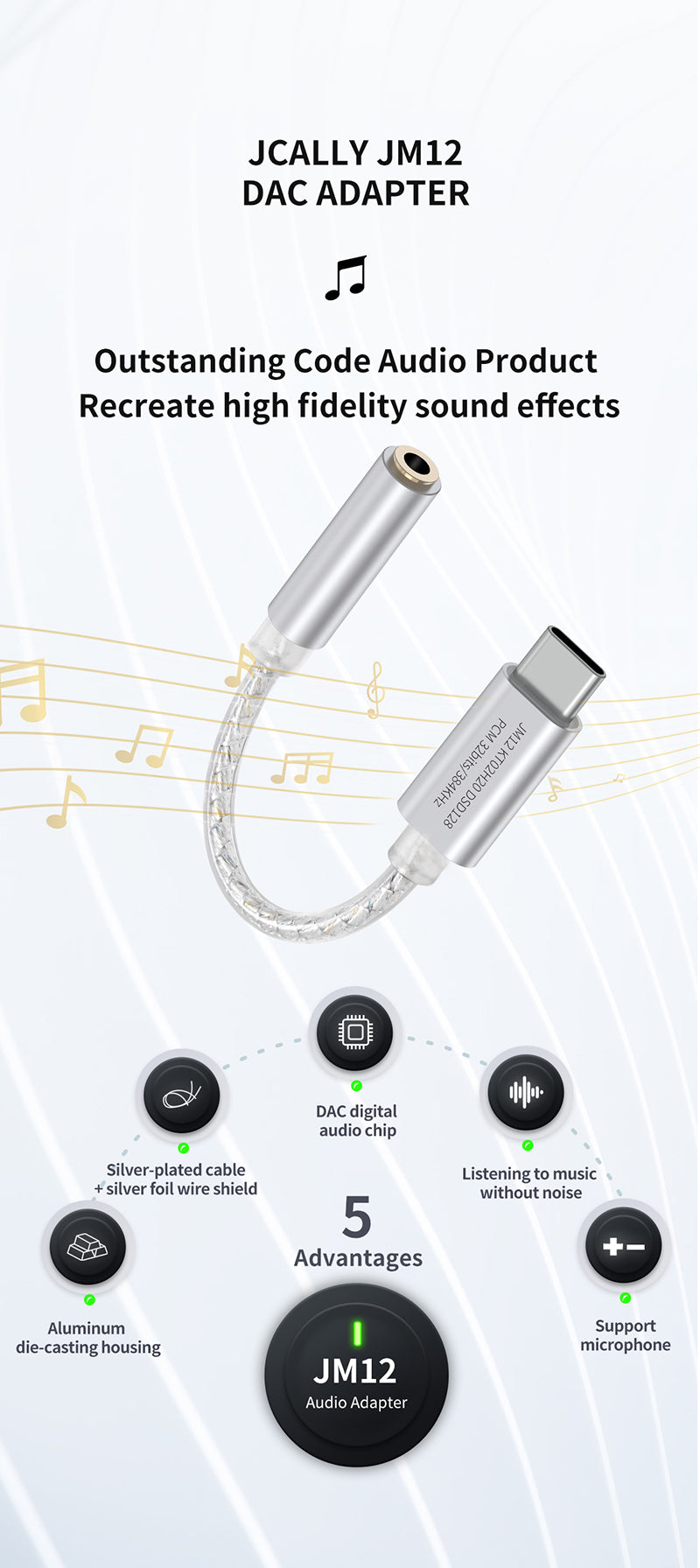

Outstanding Code Audio ProductRecreate high fidelity sound effectsXA

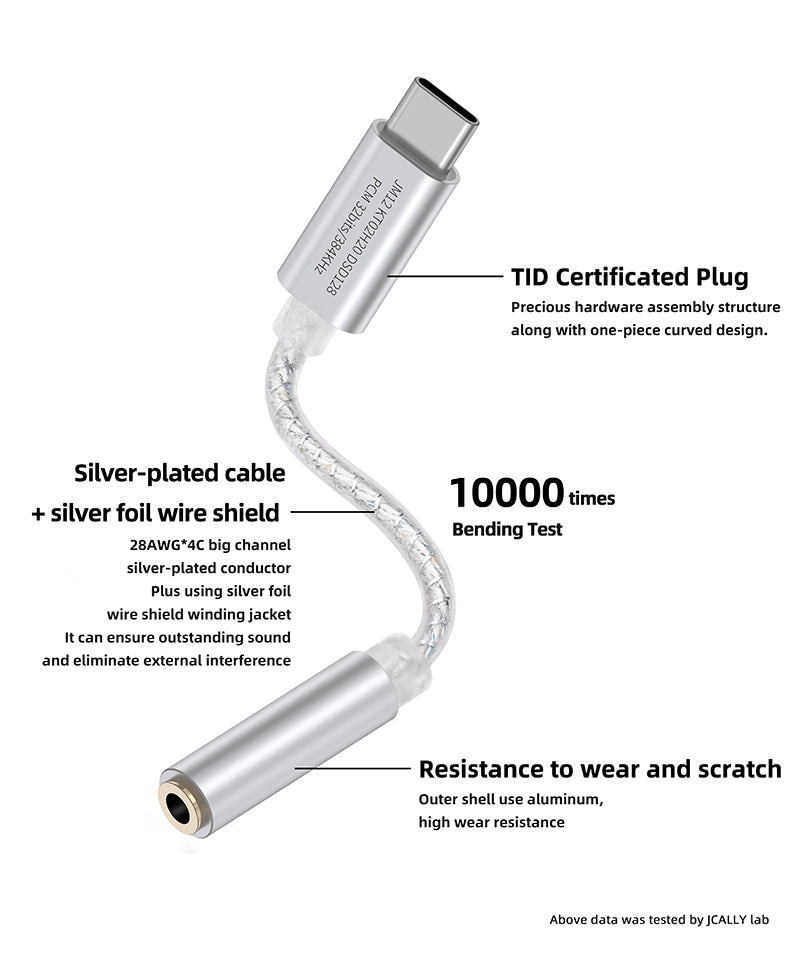

TiD Certificated Plug
Precious hardware assembly structurealong with one-piece curved design.
Silver-plated cable+ silver foil wire shield
28AWG*4C big channelsilver-plated conducto!plus using silver foilwire shield winding jacketlt can ensure outstanding soundand eliminate external intererence
10000:mes Bending Test
Resistance to wear and scratch
Outer shell use aluminum,high wear resistance

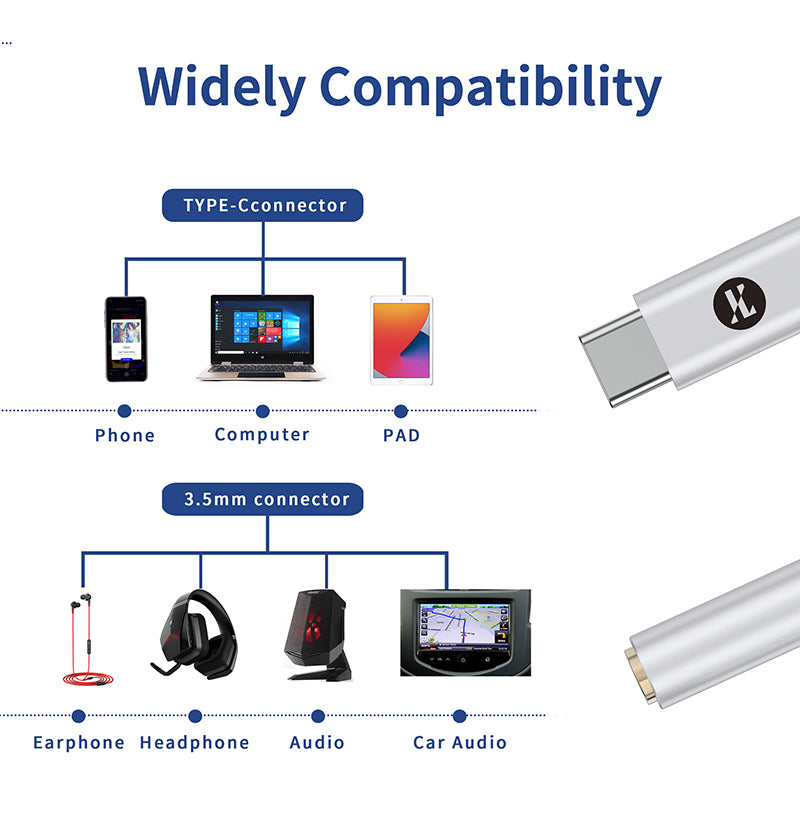

Widely Compatibility

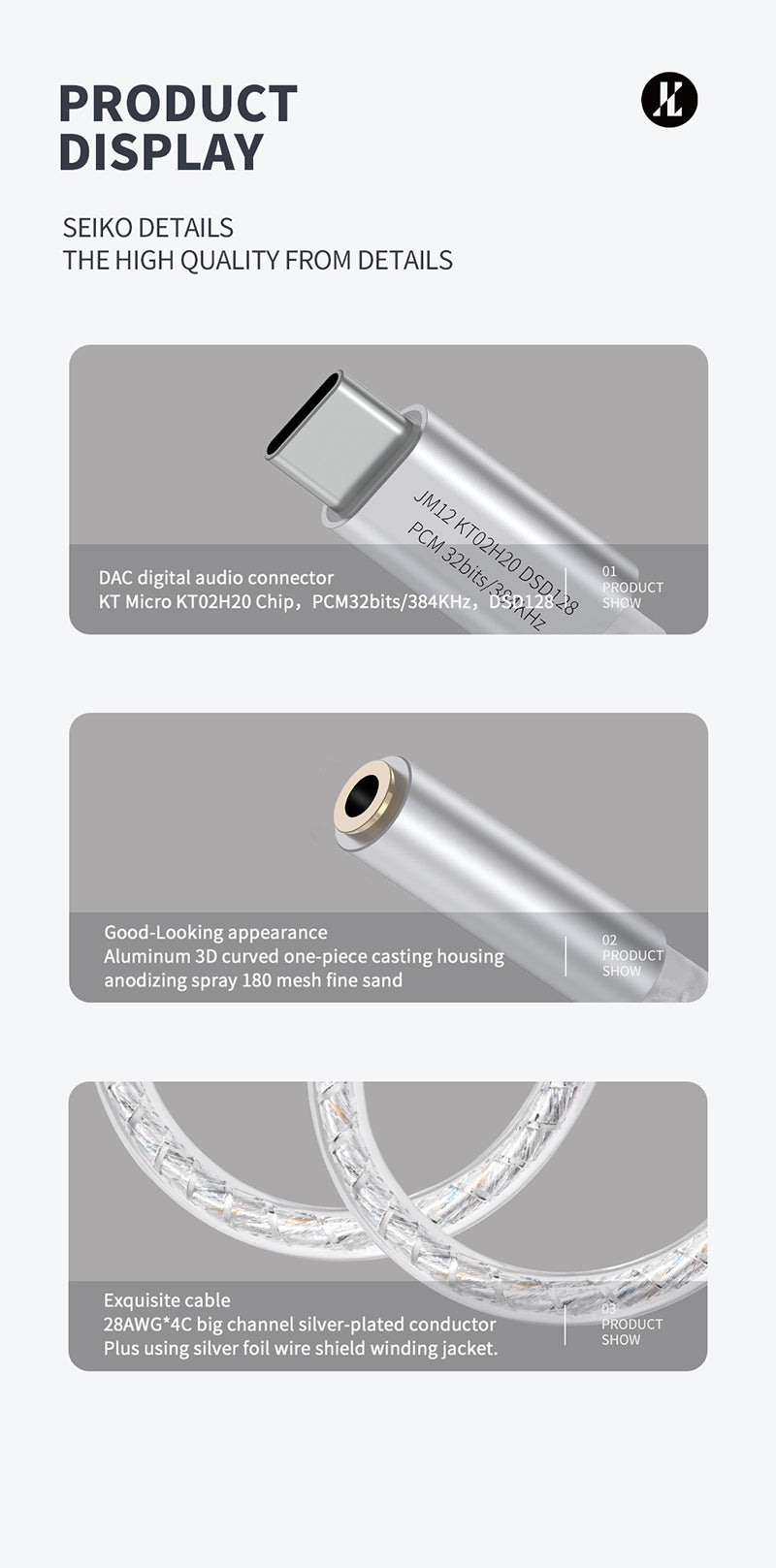

PRODUCTDISPLAY
SEIKO DETAILS THE HIGH QUALITY FROM DETAILS
DAC digital audio connector KT Micro KT02H20 Chip,PCM32bits/384KHz, BSD128
Good-Looking appearance Aluminum 3D curved one-piece casting housinganodizing spray 180 mesh fine sand
Exquisite cable
28AWG*4C big channel silver-plated conductor Plus using silver foil wire shield winding iacket

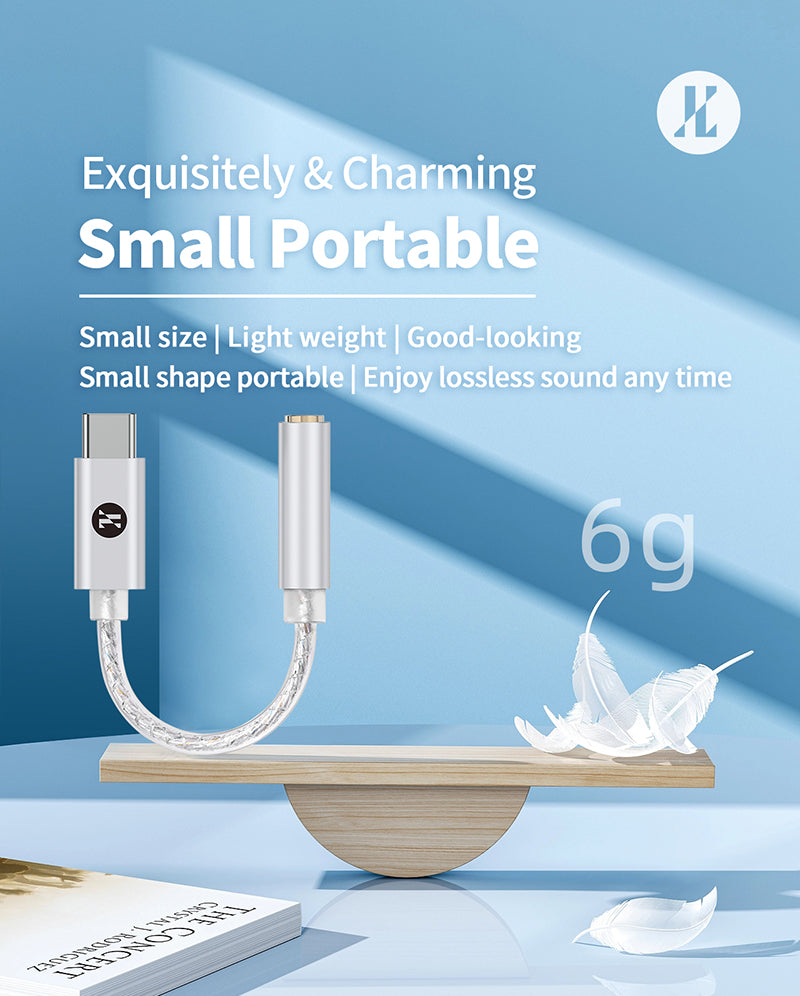

Exquisitely& CharmingSmall Portable
Small size |Light weight |Good-lookingSmall shape portable |Enjoy lossless sound any time

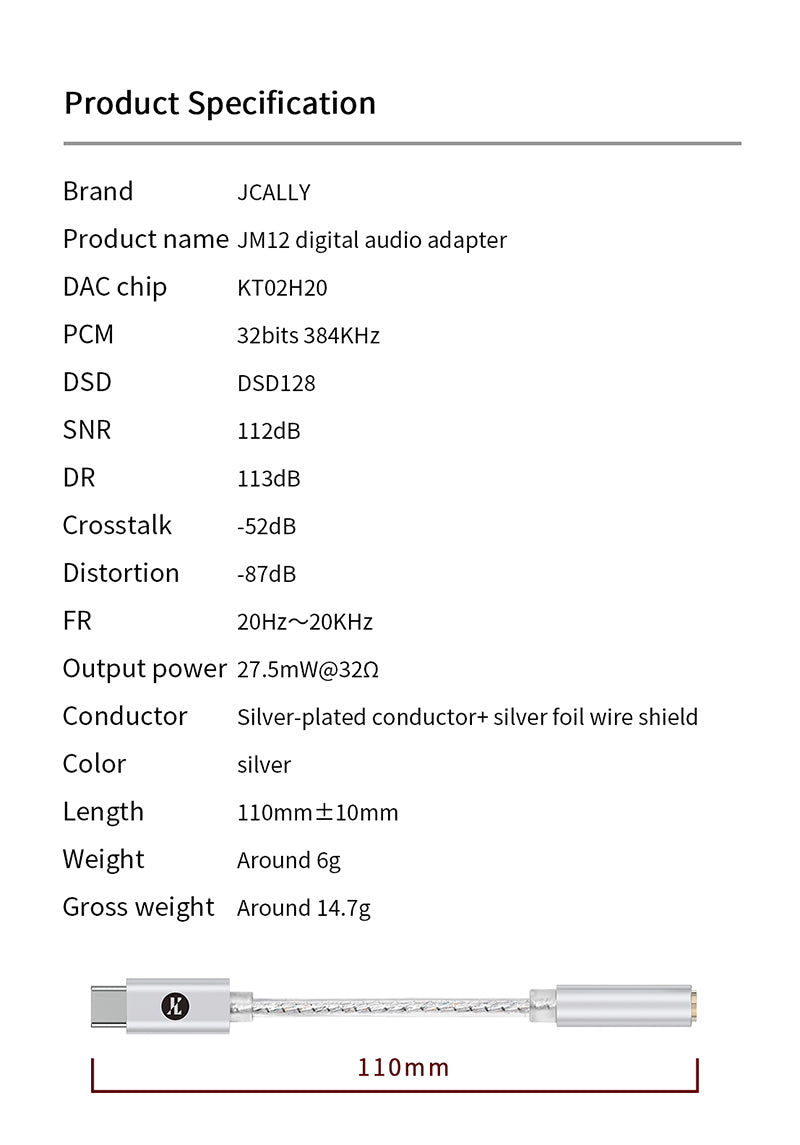

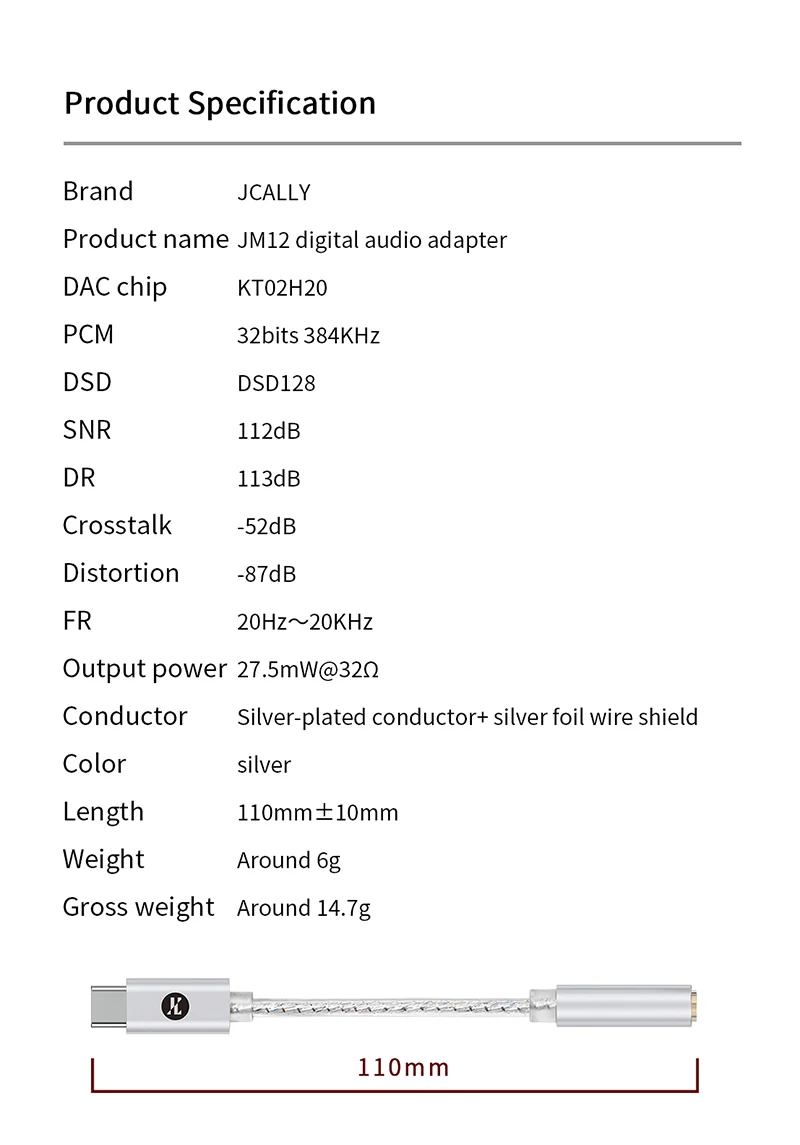

Product Specification
Brand: JCALLY
Product name: JM12 digital audio adapter
DAC chip: KT02H20
PCM:32bits 384KHz
DSD: DSD128
SNR: 112dB
DR: 113dB
Crosstalk:-52dB
Distortion: -87dB
FR:20Hz~20KHz
Conductor: Silver-plated conductor+ silver foil wire shield
Output power : 27.5mw@32Ω

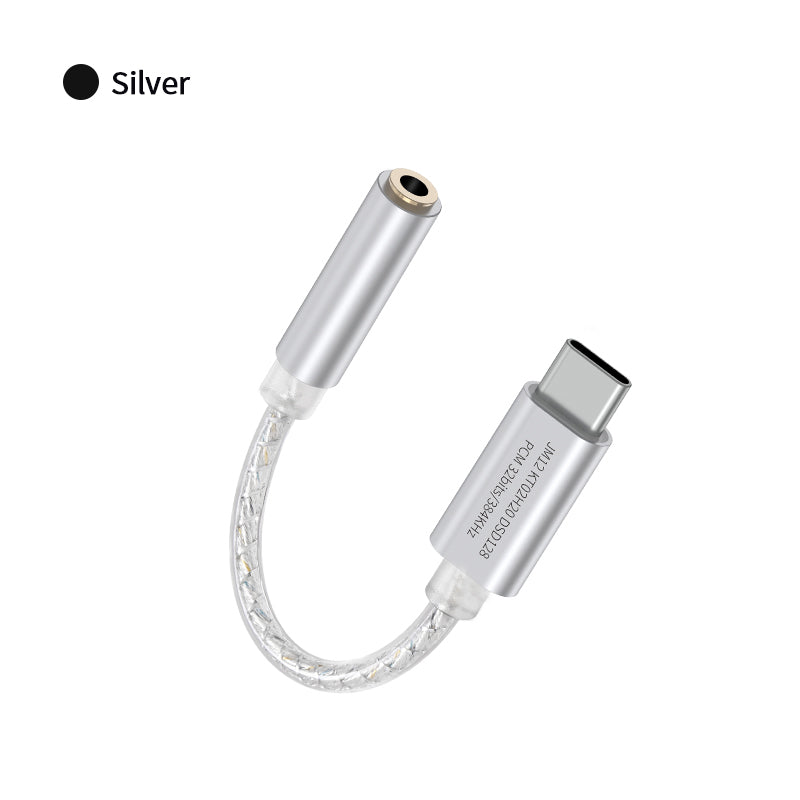

Color: silver
Length :110mm士10mm
Weight: Around 6g
Gross weight Around 14.7g
