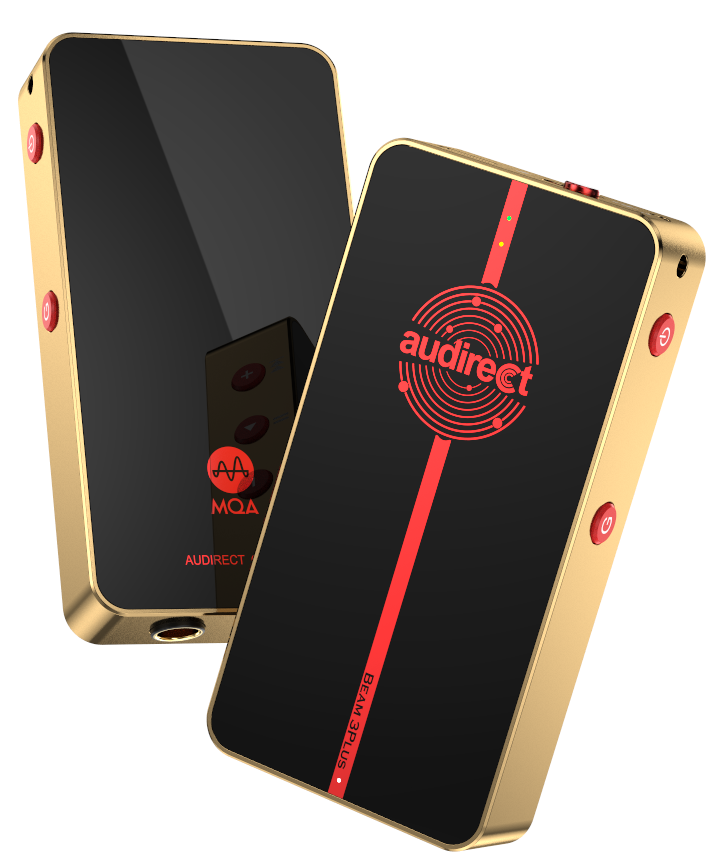

Flagship portable DAC and headphone amplifierBeam 3Plus
- Bluetooth mode
- 3.5 single-ended
- 4.4 balanced
- Support MQA
Focus on portable decoding and headphone amplifierNew leading core technology

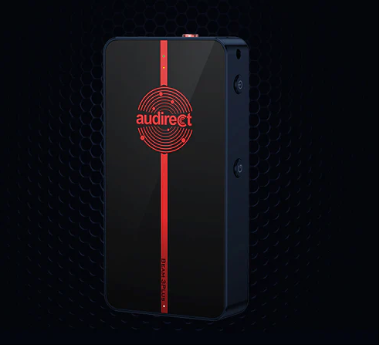

Adopting AG technology, the new color of Royal Blue is launchedMore delicate and soft touch
Fully upgraded ES9281AC PRO chipPowerful internal independent chip

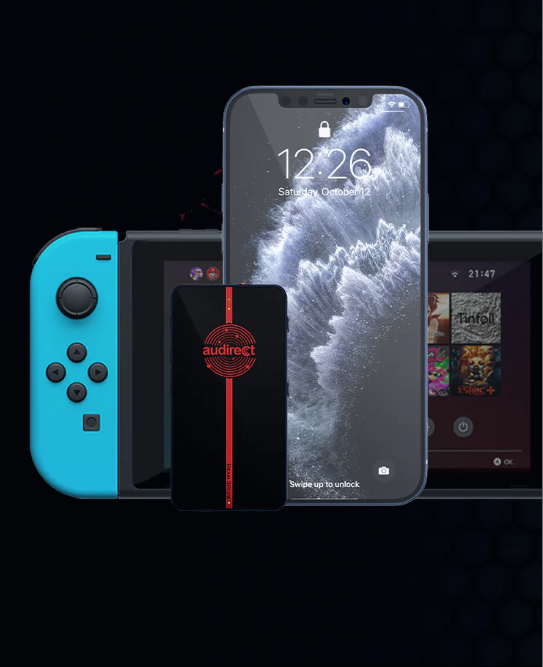

It uses the ES9281 AC PRO independent audio decoding chip produced by ESS, a global audio chip manufacturer, which supports up to PCM/DXD (32-bit/768kHz) and is equipped with dual independent op amp chips, allowing mobile phones/computers/game consoles to also be HIFI.
Enjoy wired lossless/wireless high-spec soundOne-touch switchConnection mode switch
The blue light flashes for Bluetooth pairing. The computer or mobile phone will show that it is connected to Beam3Plus. Click the link. The blue light will turn off after pairing is completed. Turn on Beam 3Plus again and the blue light will flash. The device will automatically connect to Beam3Plus. After the connection is completed, the blue light will turn off and the device screen will prompt: Connected to Beam 3Plus

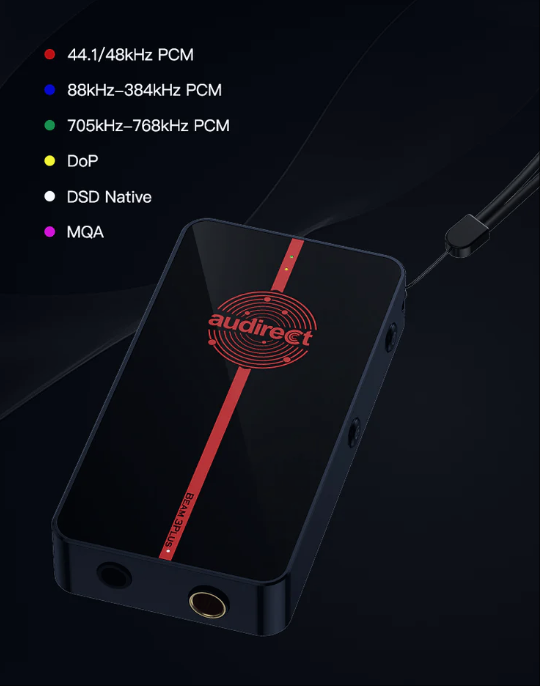

*If the audio format is LDAC or APT-XHD, the audio indicator light is blue, otherwise it is red

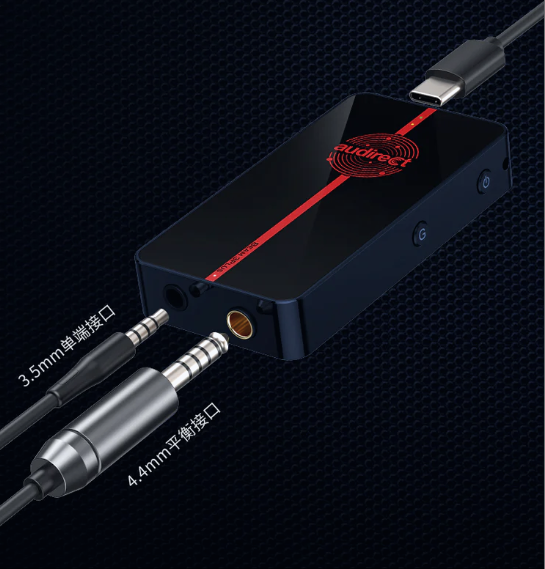

Two interfaces to meet multiple needsMeet two wishes at onceWith 3.5mm single-ended/4.4mm balanced headphone interface
MOA reproduces master-level sound quality, allowing you to be in the music palace
Beam 3Plus supports mqa renderer, expanding the third layer of MQA audio files: listen to the sound of the original master! Restore the real and full music details.
- MOA obtains the original music signal in the recording studio.
- After obtaining the signal, MOA will "fold" the music signal to obtain a file size suitable for network transmission, which is called "Musicorigami".
- MOA files can be reproduced on almost all devices with higher sound quality than CD. When used with MOA renderer, it can even reproduce the effect of the original recording.

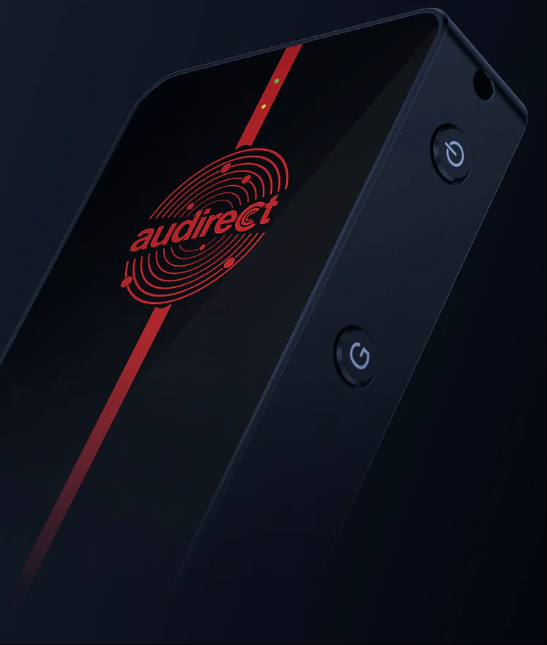

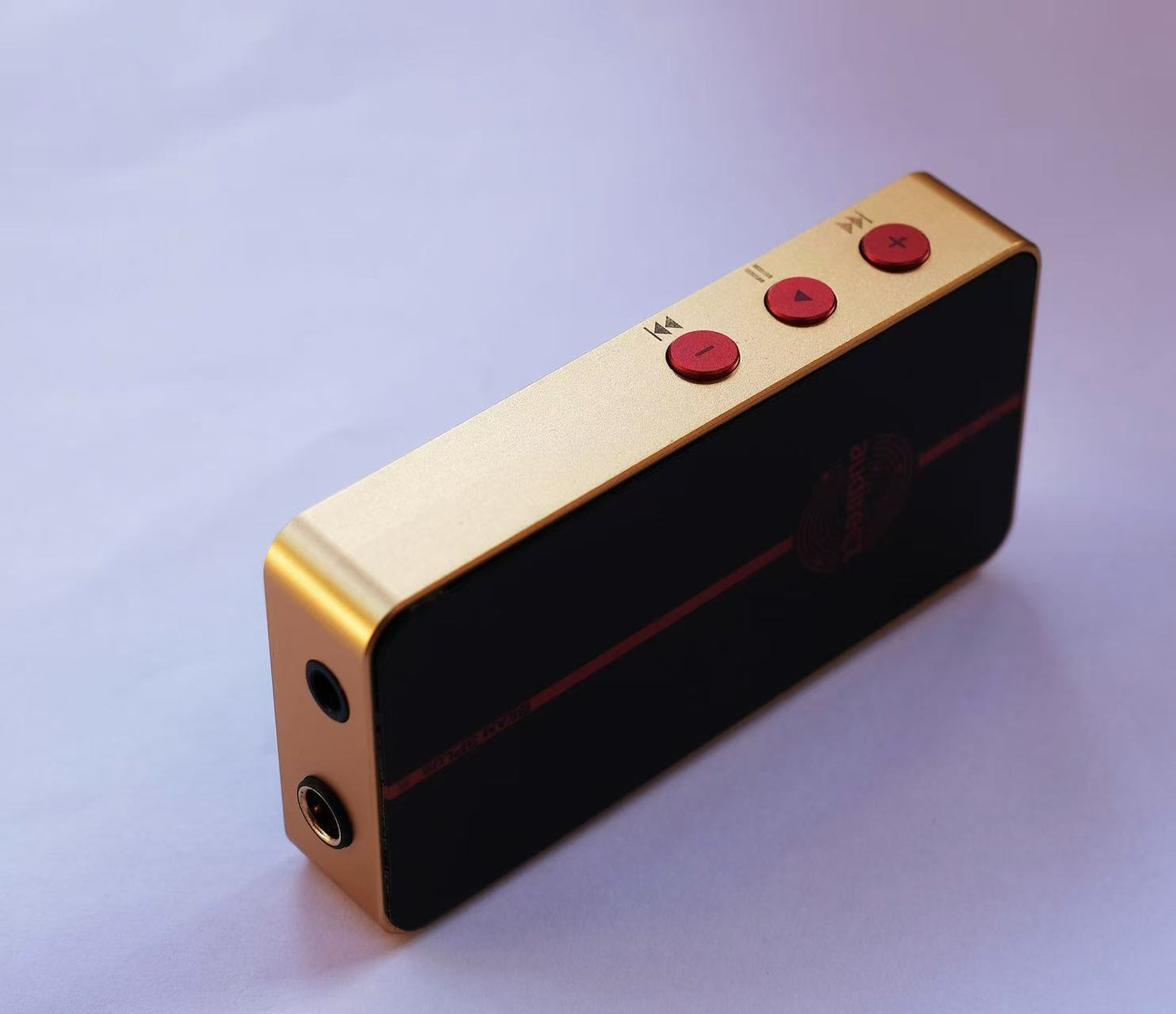

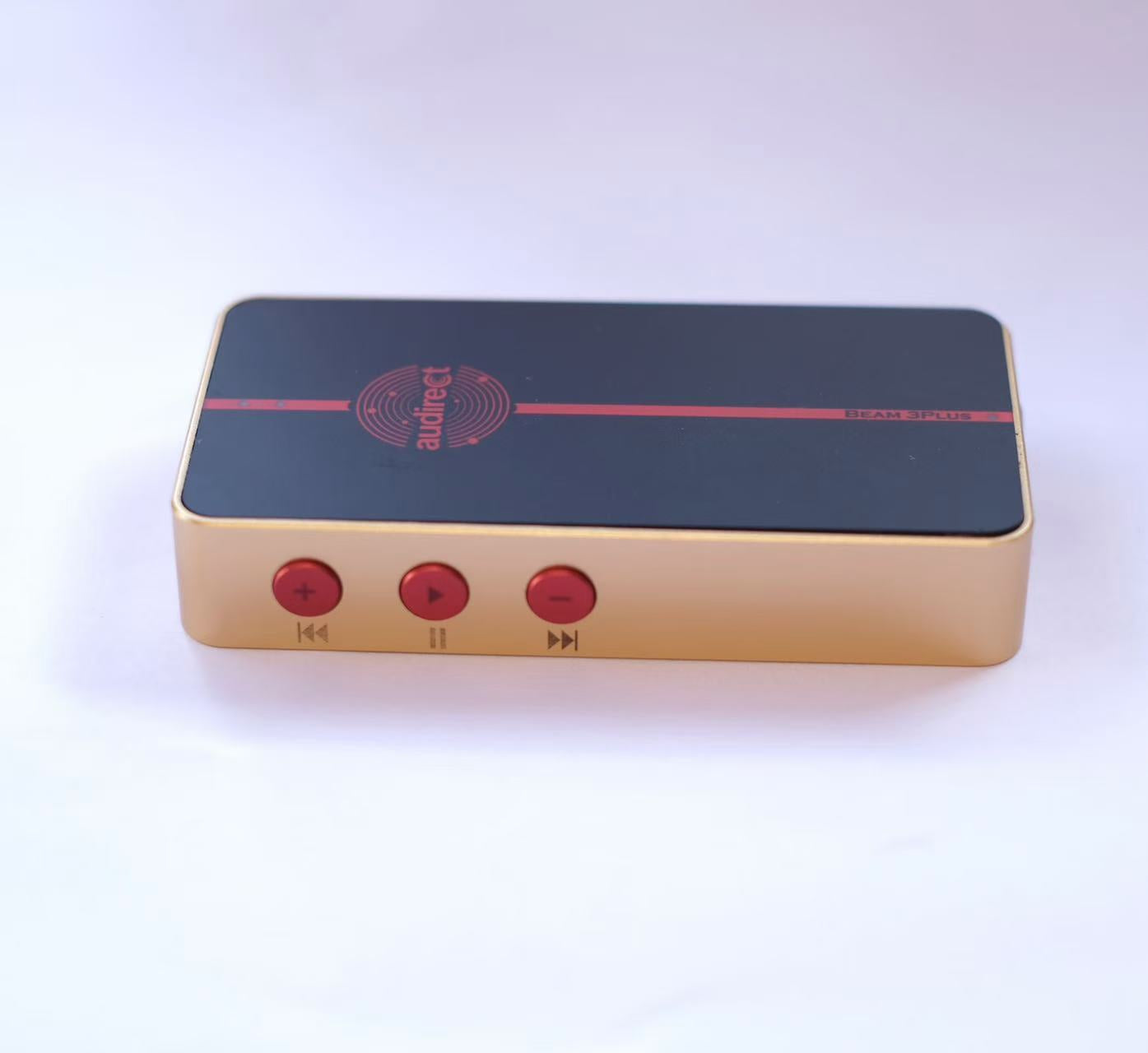

Buttons on the body
Listen to music, switch music and adjust volume anytime and anywhere

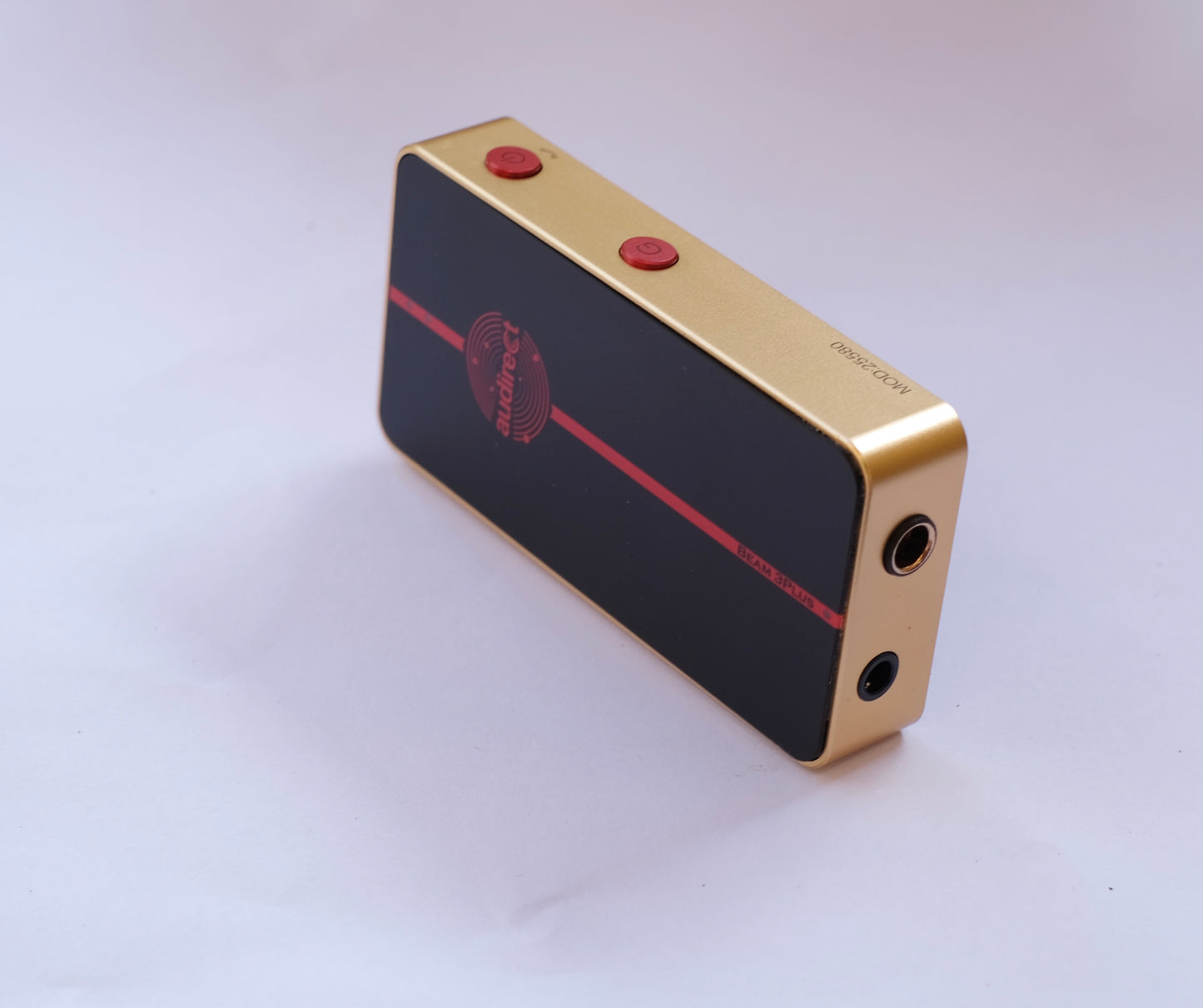

High-end and lightweight appearance
One-piece copper-zinc alloy, showing high-end texture.
Real-time enhanced game sound effectsGame mode for full enjoyment
Gain adjustment intelligent indicator light
Suitable for all types of impedance headphones
Short press: high (red) / medium (yellow) / low (green) gain switch
Beam 3Plus Detailed Specifications
- 4.4mm output power ≥110mW(16Ω) ≥230mW(320) ≥227.78mW(6000)
- 3.5mm output power ≥141mW(160) ≥122mW(320) ≥7mW(6000)
- Output port 3.5/4.4(BAL)
- Input interface Type-C
- MQA Renderer mode
MQA Renderer Expand the third level of MQA file - 2 op amps
- Distortion + Noise (THD+N) 0.0004%
- Size：L75*W39*H12mm
- Sampling rate PCM/DXD32-bit/768kHz
- Supports DSD specifications up to DSD512
- Internal resistance <10
- Signal-to-noise ratio>118dB
- Net weight 69g
